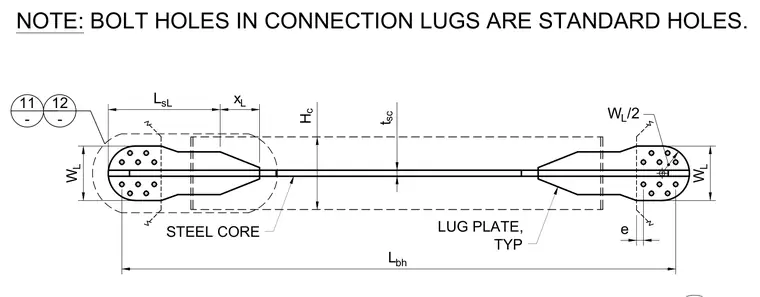

This structural detail shows a steel core plate connected to lug plates using bolted connections. Bolt holes in the connection lugs are standard holes. Dimensional variables indicate plate thicknesses, widths, and spacing requirements.
L bh L sL x L H c t sc e W L 12 - STEEL CORE LUG PLATE, TYP W L /2 W L 11 - NOTE: BOLT HOLES IN CONNECTION LUGS ARE STANDARD HOLES.
