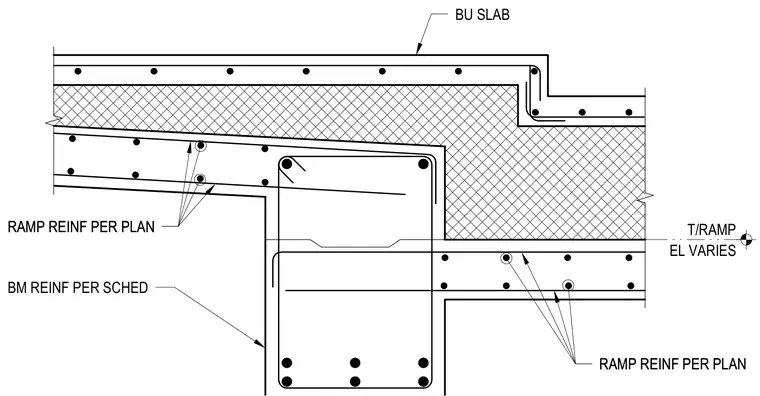

A reinforced concrete ramp slab transitions across a supporting concrete beam with variable top elevations. Ramp reinforcement is placed per plan throughout the slab section. Beam reinforcement is provided per the structural schedule. A build-up slab layer is positioned over the top of the concrete assembly.
EL VARIES T/RAMP RAMP REINF PER PLAN RAMP REINF PER PLAN RAMP REINF PER PLAN BM REINF PER SCHED RAMP REINF PER PLAN BU SLAB
