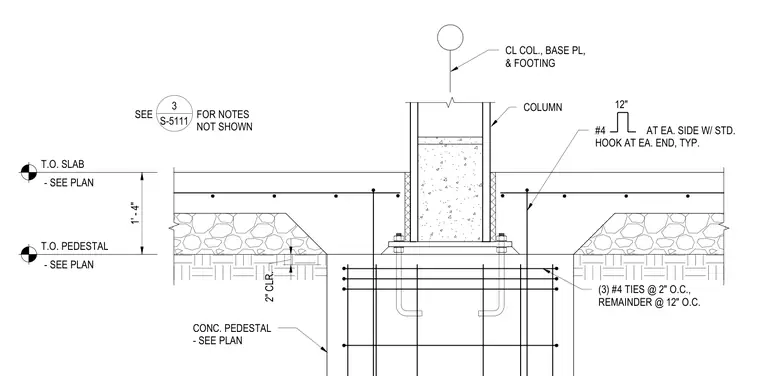

A steel column sits on a base plate anchored to a concrete pedestal with anchor bolts embedded in the footing. The pedestal is detailed with three number 4 ties at 2 inches on center, with the remainder at 12 inches on center. Additional number 4 bars with standard hooks are placed at each side. The assembly maintains a 2-inch clearance and interfaces with a concrete slab above the pedestal.
T.O. SLAB - SEE PLAN CONC. PEDESTAL - SEE PLAN (3) #4 TIES @ 2" O.C., REMAINDER @ 12" O.C. T.O. PEDESTAL - SEE PLAN 2" CLR. COLUMN CL COL., BASE PL, & FOOTING #4 AT EA. SIDE W/ STD. HOOK AT EA. END, TYP. 12" SEE FOR NOTES NOT SHOWN 3 S-5111 1' - 4"
