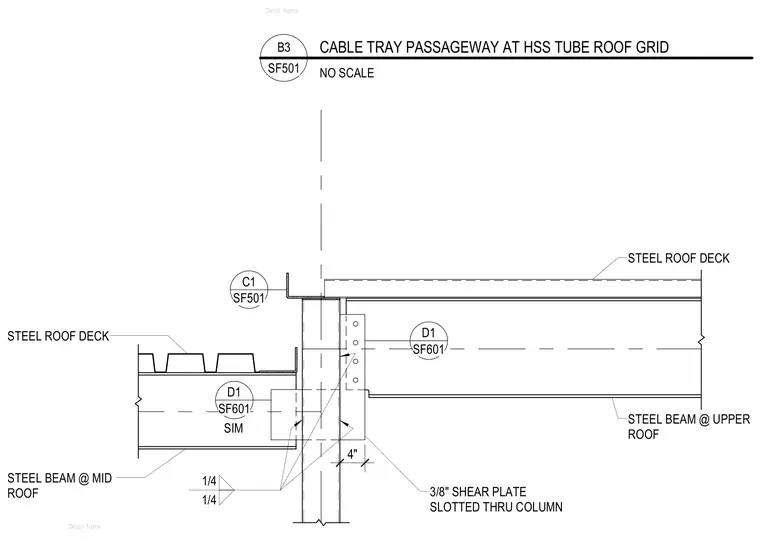

A steel beam at the upper roof frames into a hollow structural section column using a three-eighths-inch shear plate slotted through the column. A steel beam at the mid roof connects similarly on the opposite side with a four-inch dimension spacing. One-quarter-inch fillet welds secure the shear plate and beam connections. Steel roof decks bear across the top flanges of both framing members.
Detail Name Detail Name SF601 D1 SF601 D1 SIM STEEL BEAM @ MID ROOF 4" 3/8" SHEAR PLATE SLOTTED THRU COLUMN STEEL BEAM @ UPPER ROOF STEEL ROOF DECK SF501 C1 1/4 1/4 STEEL ROOF DECK NO SCALE SF501 B3 CABLE TRAY PASSAGEWAY AT HSS TUBE ROOF GRID
