A drag beam connects to an existing wide-flange beam with a quarter-inch fillet weld and a welded connection referenced on sheet S6.2. Two rows of Hilti fasteners at twelve inches on center with a two-and-a-half-inch row spacing secure the assembly through the existing metal deck. Where the deck runs parallel to the drag beam, the drag beam is lowered by its flange thickness and a spreader plate is provided as needed for the fastener. Deck orientation is referenced per plan.

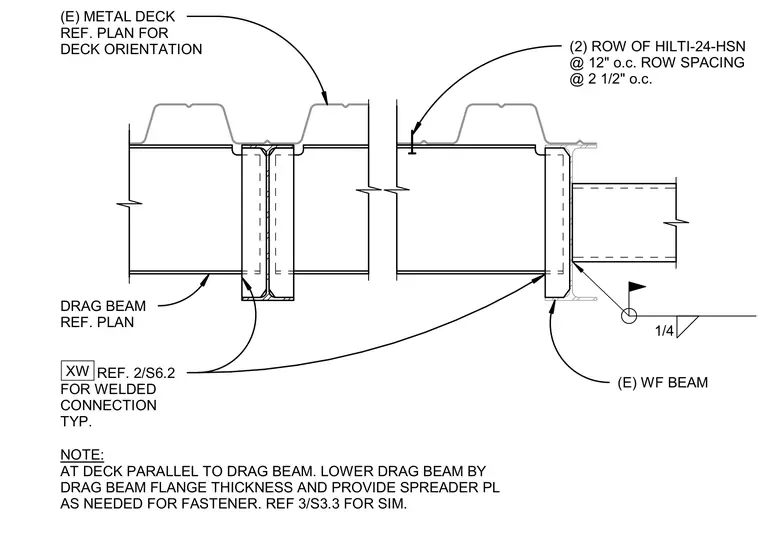

DRAG BEAM REF. PLAN REF. 2/S6.2 FOR WELDED CONNECTION TYP. XW (E) METAL DECK REF. PLAN FOR DECK ORIENTATION (2) ROW OF HILTI-24-HSN @ 12" o.c. ROW SPACING @ 2 1/2" o.c. 1/4 (E) WF BEAM NOTE: AT DECK PARALLEL TO DRAG BEAM. LOWER DRAG BEAM BY DRAG BEAM FLANGE THICKNESS AND PROVIDE SPREADER PL AS NEEDED FOR FASTENER. REF 3/S3.3 FOR SIM.
