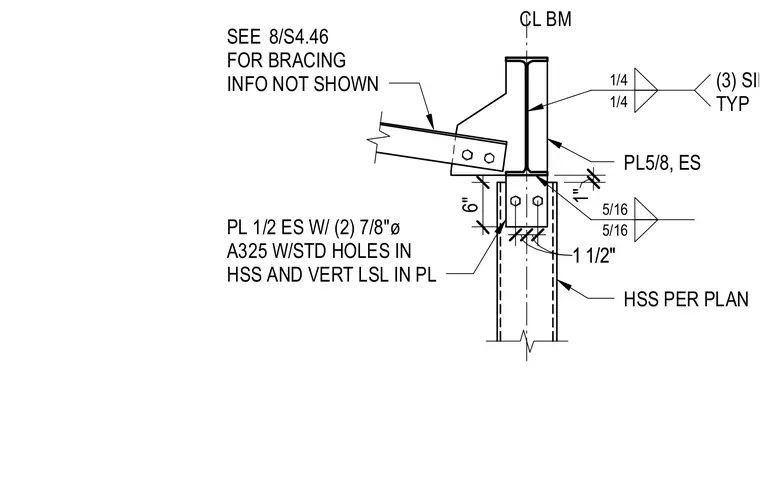

A structural steel beam frames into a hollow structural section column with a five-eighths inch plate welded each side using quarter-inch fillet welds on three sides typically. A diagonal brace connects via a half-inch plate on each side fastened with two seven-eighths-inch diameter A325 bolts with standard holes in the hollow structural section and vertical laminated strand lumber in the plate. The connection includes five-sixteenth-inch fillet welds and a one-and-a-half-inch offset. Additional bracing information is referenced on sheet 8 over S4.46.
5/16 5/16 PL5/8, ES (3) SIDES, TYP 1/4 1/4 CL BM 1 1/2" 1 1/2" 6" HSS PER PLAN PL 1/2 ES W/ (2) 7/8"ø A325 W/STD HOLES IN HSS AND VERT LSL IN PL SEE FOR BRACING INFO NOT SHOWN 8/S4.46 1"
