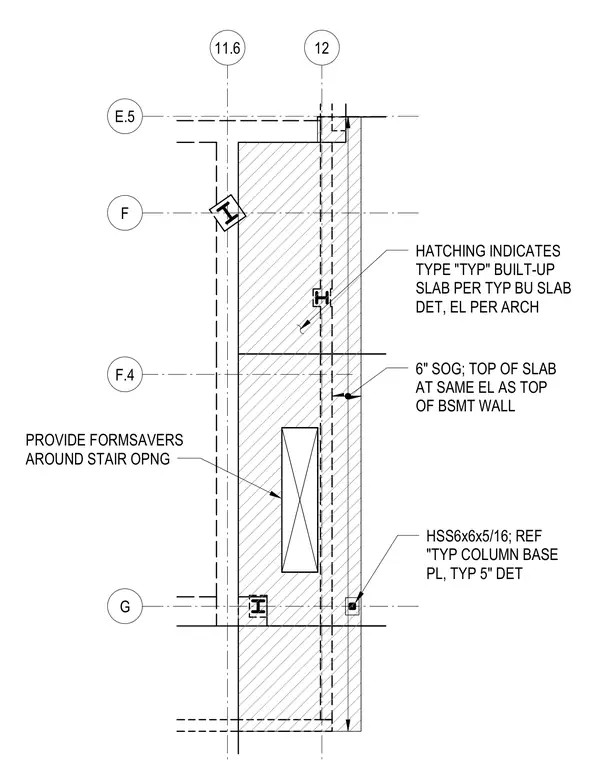

This structural plan detail shows a six-inch slab on grade adjacent to a basement wall, with the top of the slab aligned to the top elevation of the basement wall per architectural specifications. A hatched region indicates a type typical built-up slab referencing the typical built-up slab detail. An HSS 6x6x5/16 hollow structural section column is positioned at the grid intersection, referencing the typical column base plate detail. Formsavers are provided around the stair opening within the slab.
12 G F F.4 11.6 E.5 HATCHING INDICATES TYPE "TYP" BUILT-UP SLAB PER TYP BU SLAB DET, EL PER ARCH HSS6x6x5/16; REF "TYP COLUMN BASE PL, TYP 5" DET 6" SOG; TOP OF SLAB AT SAME EL AS TOP OF BSMT WALL PROVIDE FORMSAVERS AROUND STAIR OPNG
