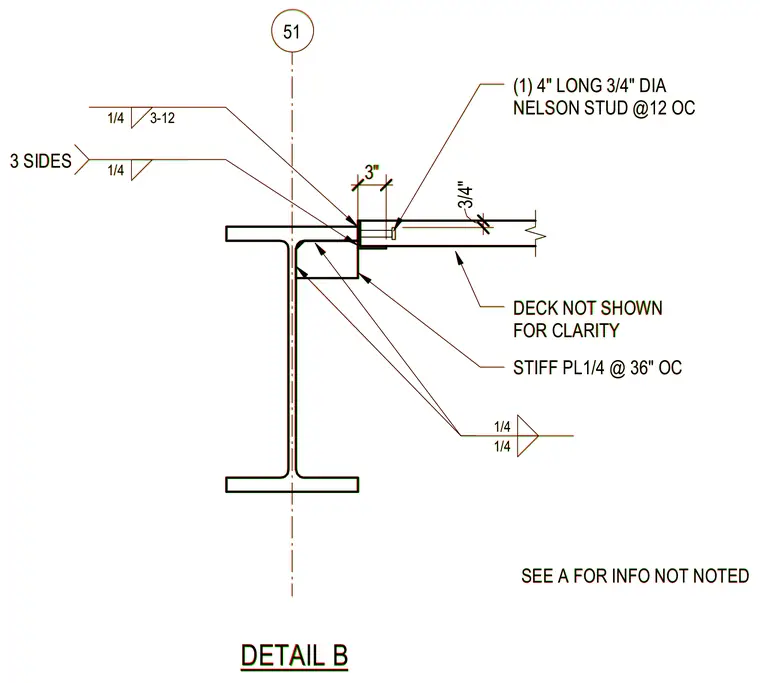

A steel beam connects to an embedded assembly utilizing one 4-inch long by 3/4-inch diameter Nelson stud spaced at 12 inches on center. A 3/4-inch stiffener plate is welded at 36 inches on center with 1/4-inch fillet welds applied on three sides. The metal deck is omitted for clarity, maintaining a 3-inch offset dimension. Additional unnoted requirements refer back to detail A.
51 (1) 4" LONG 3/4" DIA NELSON STUD @12 OC 3/4" STIFF PL1/4 @ 36" OC 3" DECK NOT SHOWN FOR CLARITY 1/4 1/4 SEE A FOR INFO NOT NOTED 3 SIDES 1/4 3-12 1/4 DETAIL B 51 (1) 4" LONG 3/4" DIA NELSON STUD @12 OC 3/4" STIFF PL1/4 @ 36" OC 3" DECK NOT SHOWN FOR CLARITY 1/4 1/4 SEE A FOR INFO NOT NOTED 3 SIDES 1/4 3-12 1/4 DETAIL B
