Structural · S-Y2WVR

Interior Steel Brace Connection to Concrete Tilt-Up Panel

Materials

Concrete Steel Metal (misc.)

Elements

Roofs Decks Arches Bracing Expansion / Control Joints Connections / Plates

Connections

Braced Frame Connection Bracing Connection Expansion / Slip Connection

About this detail

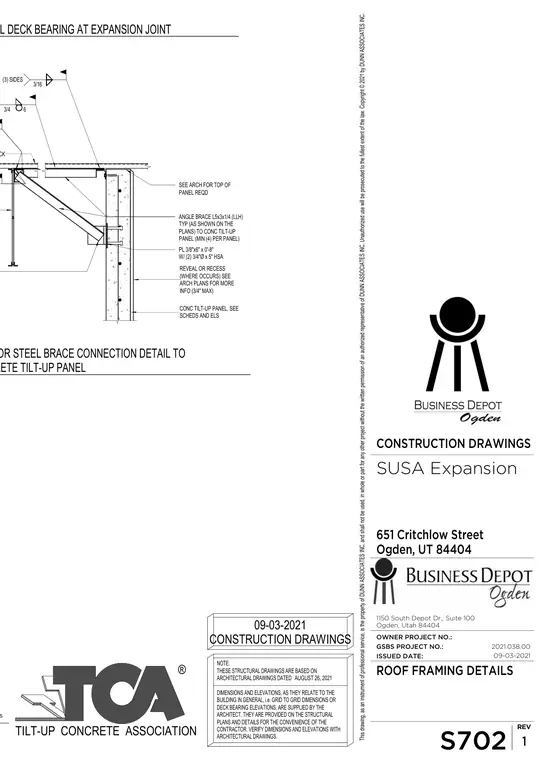

An interior steel brace connection ties the roof framing to a concrete tilt-up wall panel using an L5x3x1/4 angle brace connected via a 3/8-inch by 6-inch by 0-foot 8-inch plate anchored with two 3/4-inch diameter by 5-inch heavy stud anchors. A three-sixteenths-inch fillet weld on three sides secures the connection at the upper framing. A minimum of four braces per panel are installed per the structural plans, coordinating with the architectural metal roof deck reveal or recess.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
