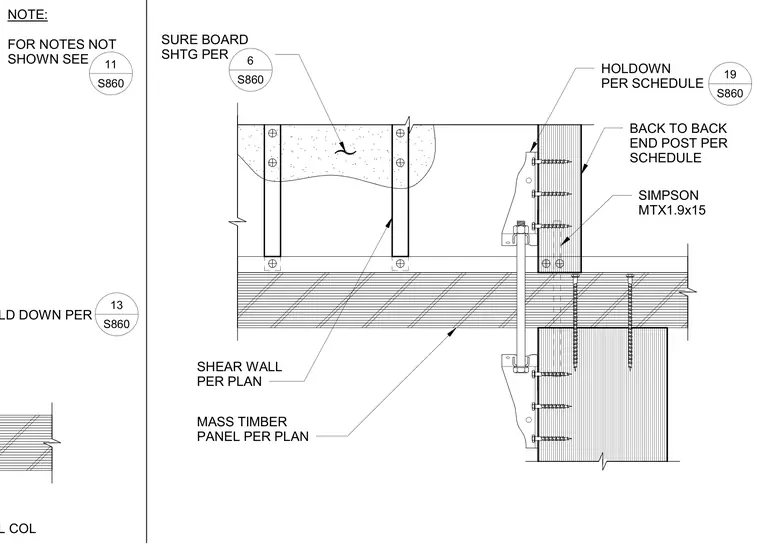

A mass timber shear wall holdown connection occurs at a multi-ply column. The assembly incorporates back-to-back end posts anchored with Simpson MTX1.9x15 fasteners and a holdown device sized per the structural schedule. A mass timber panel ties into the shear wall assembly, which is sheathed with Sure Board sheathing as specified per plan. Additional detailing notes are referenced to sheet S860.
HOLD DOWN PER 13 S860 MPL COL NOTE: FOR NOTES NOT SHOWN SEE 11 S860 SURE BOARD SHTG PER 6 S860 SHEAR WALL PER PLAN HOLDOWN PER SCHEDULE 19 S860 BACK TO BACK END POST PER SCHEDULE SIMPSON MTX1.9x15 MASS TIMBER PANEL PER PLAN
