Structural · S-Y28DN

Column Erection After Slab

Materials

Concrete Masonry / CMU

Elements

Columns Beams Floors / Slabs Foundations / Footings Arches Waterproofing / Flashing Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

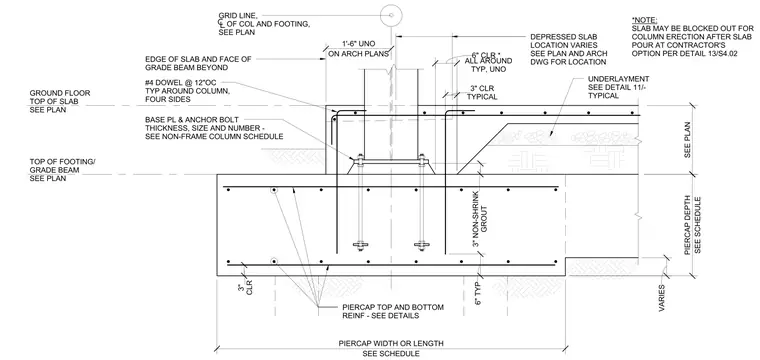

A structural steel column base plate and anchor bolts are set atop a reinforced concrete pier cap and grade beam foundation with three inches of non-shrink grout. Number four dowels at twelve inches on center are placed typically around all four sides of the column. A depressed slab condition with underlayment bears adjacent to the foundation, with the option for a slab block-out to facilitate column erection after the main slab pour. Pier cap top and bottom reinforcing, base plate thickness, anchor bolt size and number, and pier cap dimensions are sized per schedule.
