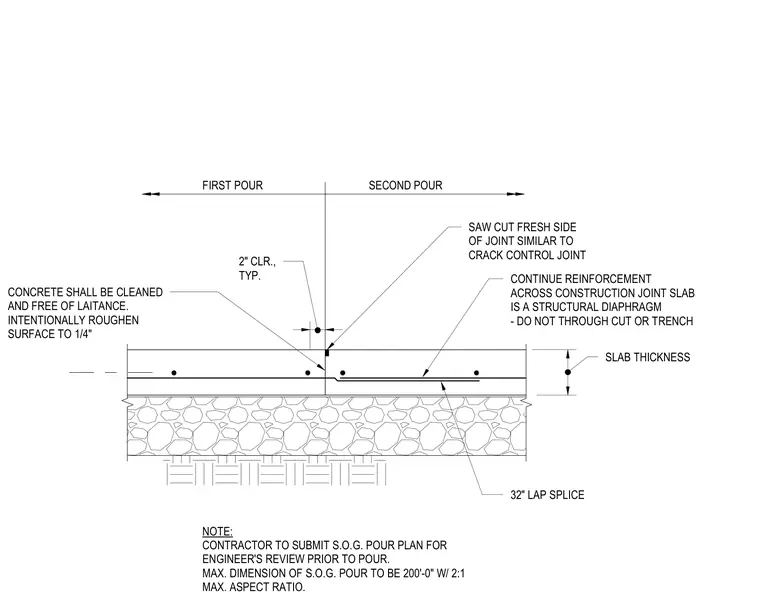

A slab on grade construction joint connects a first pour and a second pour. Reinforcement continues across the construction joint with a thirty-two inch lap splice, maintaining structural diaphragm continuity without through-cutting or trench-saw-cutting the fresh side of the joint. The joint is finished with a crack control saw cut on the second pour side. Concrete surfaces must be cleaned, free of laitance, and intentionally roughened to one-quarter inch with two inches of typical clearance.
CONTINUE REINFORCEMENT ACROSS CONSTRUCTION JOINT SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH SAW CUT FRESH SIDE OF JOINT SIMILAR TO CRACK CONTROL JOINT FIRST POUR SECOND POUR NOTE: CONTRACTOR TO SUBMIT S.O.G. POUR PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. MAX. DIMENSION OF S.O.G. POUR TO BE 200'-0" W/ 2:1 MAX. ASPECT RATIO. SLAB THICKNESS 2" CLR., TYP. CONCRETE SHALL BE CLEANED AND FREE OF LAITANCE. INTENTIONALLY ROUGHEN SURFACE TO 1/4" 32" LAP SPLICE
