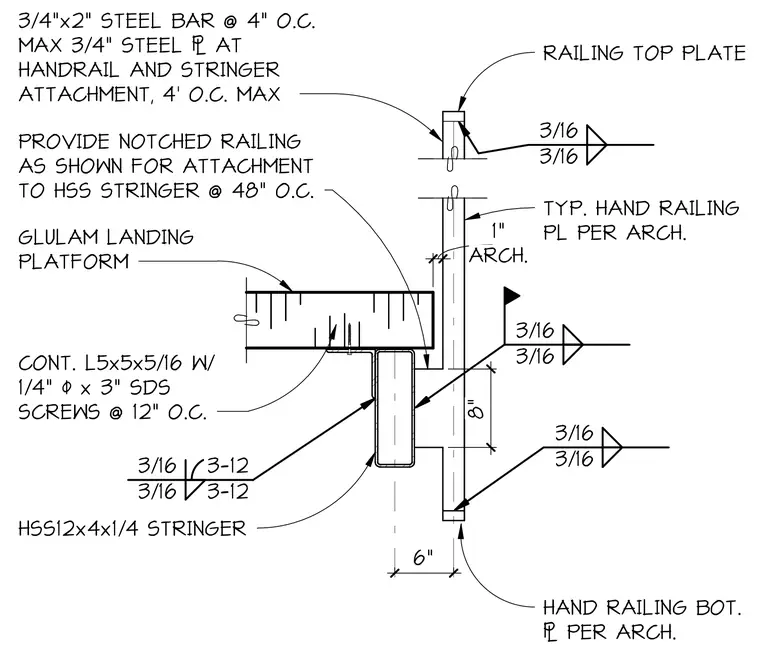

A hollow structural section HSS12x4x1/4 stair stringer connects below a glulam landing platform using a continuous L5x5x5/16 angle fastened with one-quarter-inch diameter by three-inch self-drilling screws spaced at twelve inches on center. The handrail assembly incorporates a railing top plate, typical hand railing plate per architect, and a bottom railing plate with three-sixteenth-inch fillet welds. A three-quarter-inch by two-inch steel bar is provided at four inches on center maximum, with a maximum three-quarter-inch steel plate at the handrail and stringer attachment at four feet on center maximum. The notched railing is arranged for attachment to the HSS stringer at forty-eight inches on center.
ARCH. 1" HSS12x4x1/4 STRINGER TYP. HAND RAILING PL PER ARCH. GLULAM LANDING PLATFORM 6" RAILING TOP PLATE 3/16 3/16 3/16 3/16 HAND RAILING BOT. # PER ARCH. PROVIDE NOTCHED RAILING AS SHOWN FOR ATTACHMENT TO HSS STRINGER @ 48" O.C. 8" CONT. L5x5x5/16 W/ 1/4" + x 3" SDS SCREWS @ 12" O.C. 3/16 3-12 3/16 3-12 3/4"x2" STEEL BAR @ 4" O.C. MAX 3/4" STEEL # AT HANDRAIL AND STRINGER ATTACHMENT, 4' O.C. MAX 3/16 3/16
