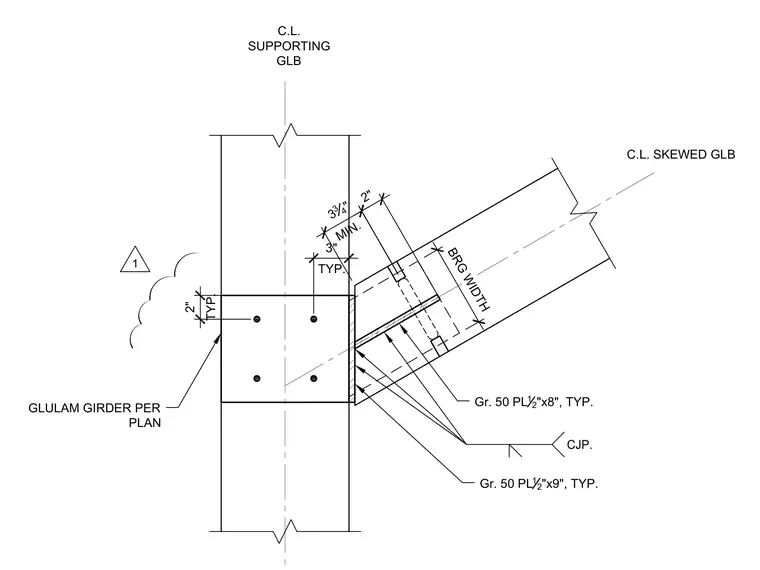

A skewed glulam beam connects to a supporting glulam girder using Grade 50 steel plates measuring one-half inch by eight inches and one-half inch by nine inches. The connection utilizes complete joint penetration welds for the steel plate assembly. The skewed glulam beam maintains a specific bearing width and center-line layout relative to the supporting glulam girder.
GLULAM GIRDER PER PLAN BRG WIDTH CJP. Gr. 50 PL 1 2 "x8", TYP. Gr. 50 PL 1 2 "x9", TYP. 3 3 4 " MIN. 2" C.L. SKEWED GLB 2" TYP. 3" TYP. C.L. SUPPORTING GLB 1
