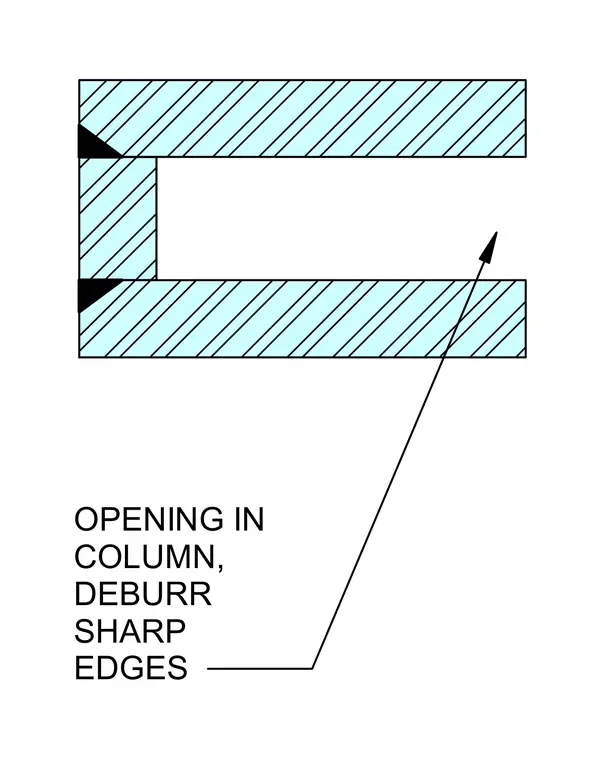

An opening is cut into the structural steel column web with the sharp edges deburred. Filler plates are fitted into the opening and secured with complete joint penetration or fillet welds at the top and bottom junctions.
