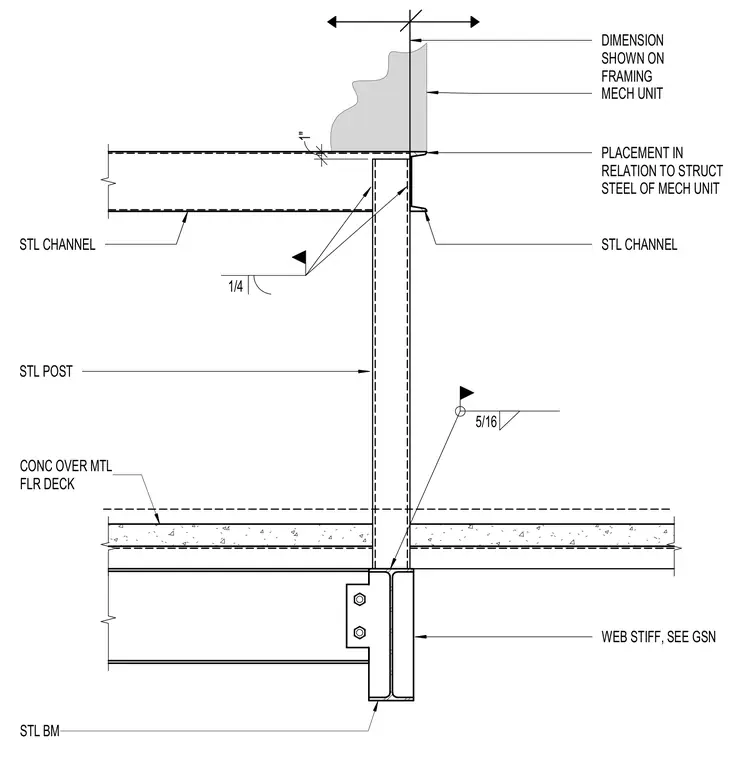

A steel post rests on a steel beam supporting a concrete over metal floor deck assembly, with a web stiffener welded to the beam per general structural notes using a five-sixteenths inch fillet weld. Steel channels frame the upper level, maintaining a one-inch clearance relative to the mechanical unit structure. A quarter-inch fillet weld connects the upper steel channel framing adjacent to the steel post.
STL POST 5/16 STL BM CONC OVER MTL FLR DECK WEB STIFF, SEE GSN 1" STL CHANNEL STL CHANNEL 1/4 PLACEMENT IN RELATION TO STRUCT STEEL OF MECH UNIT MECH UNIT DIMENSION SHOWN ON FRAMING
