Structural · S-XZ6DS

Deck Spanning Perpendicular to Beam

Materials

Steel Timber / Wood

Elements

Beams Decks

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

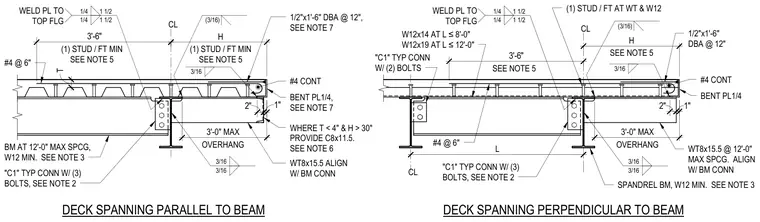

Composite floor deck and structural steel framing details showing metal deck spanning parallel and perpendicular to supporting steel beams. The assembly incorporates wide flange steel beams such as W12x14 and W12x19, WT structural tees (WT8x15.5), and C8x11.5 channel sections where slab thickness and overhang conditions require. Shear stud connectors are provided at a minimum of one per foot along structural tees and wide flange members, paired with continuous number 4 reinforcing bars and bent plates at slab edges. Framing connections utilize typical bolted shear tabs with two or three bolts and three-sixteenth-inch fillet welds securing plates to top flanges.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
