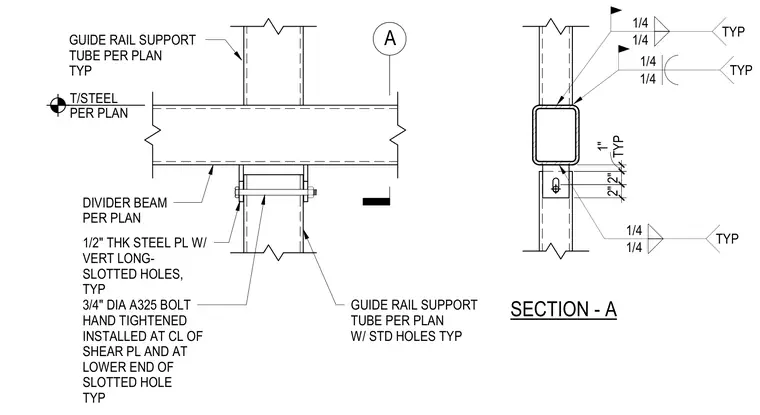

A guide rail support tube connects to a divider beam using a one-half-inch thick steel plate with typical vertical long-slotted holes. The assembly is secured with three-quarter-inch diameter ASTM A325 hand-tightened bolts installed at the centerline of the shear plate and at the lower end of the slotted hole. A second guide rail support tube with standard holes frames into the assembly. Fillet welds of one-quarter inch size are specified typically at the structural connections.
T/STEEL PER PLAN DIVIDER BEAM PER PLAN 1/2" THK STEEL PL W/ VERT LONG- SLOTTED HOLES, TYP 3/4" DIA A325 BOLT HAND TIGHTENED INSTALLED AT CL OF SHEAR PL AND AT LOWER END OF SLOTTED HOLE TYP GUIDE RAIL SUPPORT TUBE PER PLAN TYP GUIDE RAIL SUPPORT TUBE PER PLAN W/ STD HOLES TYP A SECTION - A 1/4 1/4 TYP 1/4 1/4 TYP 1/4 1/4 TYP TYP 1" 2" 2"
