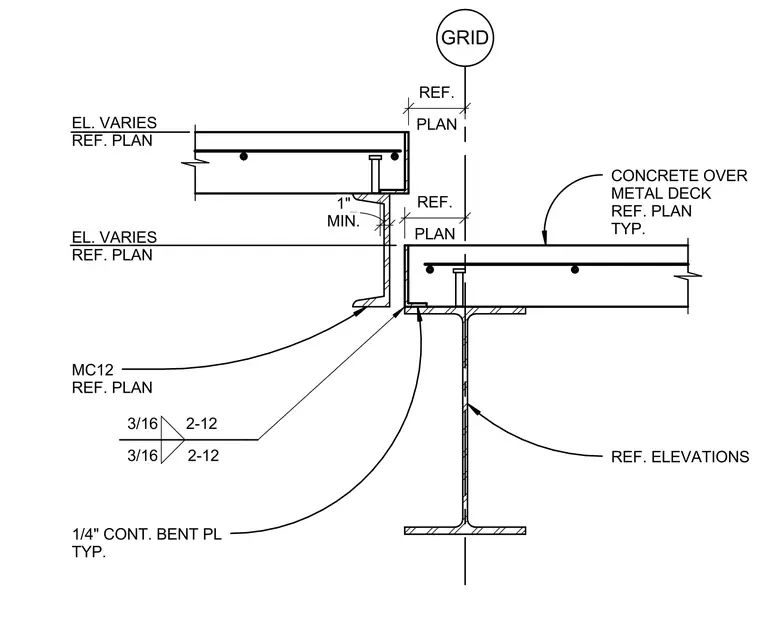

A concrete slab over metal deck bears on structural steel framing with variable elevations referenced per plan. An MC12 channel profile is tied into the assembly, maintaining a minimum 1 inch clearance. A 1/4 inch continuous bent plate is typically incorporated at the junction. Three-sixteenths fillet welds with specified spacing connect the steel elements.
GRID EL. VARIES REF. PLAN MIN. 1" PLAN REF. PLAN REF. EL. VARIES REF. PLAN MC12 REF. PLAN 3/16 2-12 3/16 2-12 1/4" CONT. BENT PL TYP. CONCRETE OVER METAL DECK REF. PLAN TYP. REF. ELEVATIONS
