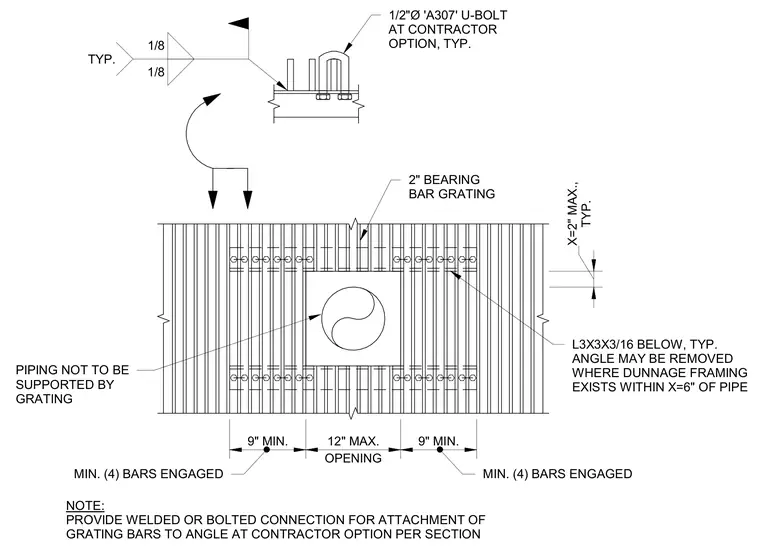

Two-inch bearing bar grating is supported by structural steel angles below, with optional welded or bolted connections for grating bars. Piping is attached using one-half-inch diameter ASTM A307 U-bolts at the contractor's option, leaving piping unsupported by the grating itself. The structural angle may be removed where dunnage framing exists within six inches of the pipe. Openings are restricted to a maximum of twelve inches with a minimum nine-inch clearance ensuring a minimum of four bars engaged.
NOTE: PROVIDE WELDED OR BOLTED CONNECTION FOR ATTACHMENT OF GRATING BARS TO ANGLE AT CONTRACTOR OPTION PER SECTION 1/8 1/8 TYP. 1/2"Ø 'A307' U-BOLT AT CONTRACTOR OPTION, TYP. PIPING NOT TO BE SUPPORTED BY GRATING 2" BEARING BAR GRATING L3X3X3/16 BELOW, TYP. ANGLE MAY BE REMOVED WHERE DUNNAGE FRAMING EXISTS WITHIN X=6" OF PIPE TYP. X=2" MAX., 9" MIN. OPENING 12" MAX. 9" MIN. MIN. (4) BARS ENGAGED MIN. (4) BARS ENGAGED
