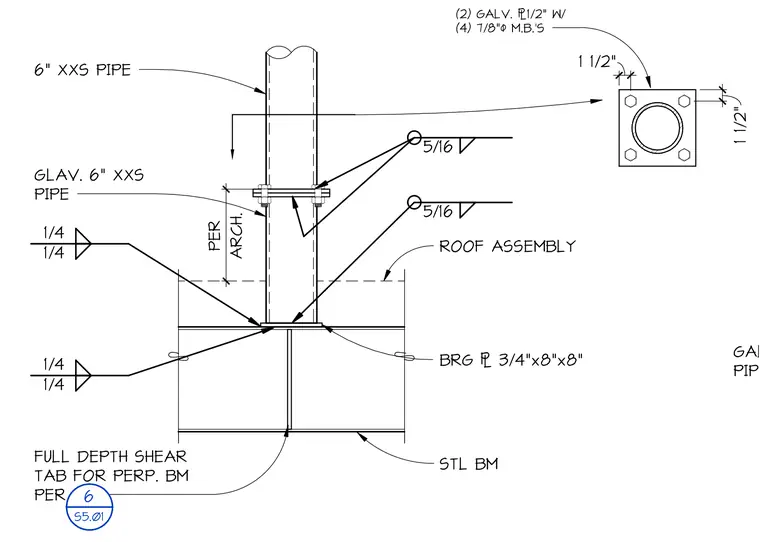

A six-inch extra-strong galvanized steel pipe column extends upward through a roof assembly and is supported by a structural steel beam via a three-quarter-inch by eight-inch by eight-inch bearing plate welded with quarter-inch fillet welds. The pipe column features a bolted splice connection made with two half-inch galvanized plates secured by four seven-eighth-inch diameter machine bolts and welded with five-sixteenth-inch fillet welds. A full-depth shear tab is provided for a perpendicular beam per sheet S5.01.
6" XXS PIPE ROOF ASSEMBLY STL BM GLAV. 6" XXS PIPE 5/16 5/16 ARCH. PER 1/4 1/4 1/4 1/4 FULL DEPTH SHEAR TAB FOR PERP. BM PER BRG & 3/4"x8"x8" 1 1/2" 1 1/2" 6 S5.01 (2) GALV. &1/2" W/ (4) 7/8", M.B.'S GALV. 6" XXS PIPE
