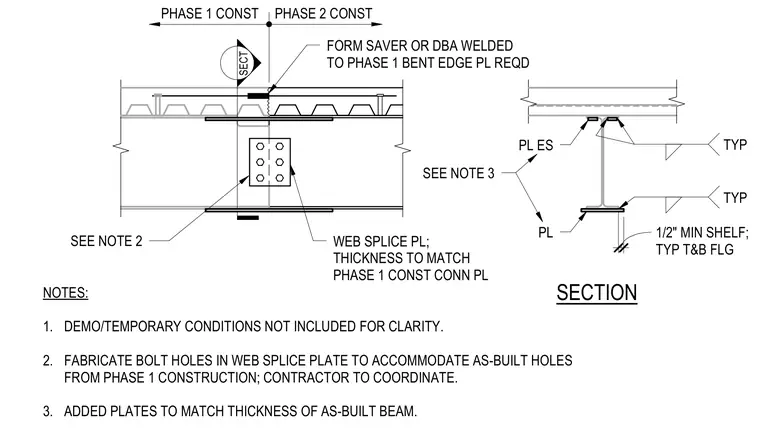

A phased addition of a steel beam frames into an existing Phase 1 construction. A web splice plate is bolted across the construction joint, with bolt holes field-fabricated to accommodate as-built conditions from Phase 1. Added plates match the thickness of the as-built beam, featuring a one-half-inch minimum shelf typical at top and bottom flanges. A form saver or deformed bar anchor welded to the Phase 1 bent edge plate is required at the slab level. Temporary demolition conditions are excluded for clarity.
SECT SECTION PL ES PL TYP TYP PHASE 1 CONST PHASE 2 CONST FORM SAVER OR DBA WELDED TO PHASE 1 BENT EDGE PL REQD WEB SPLICE PL; THICKNESS TO MATCH PHASE 1 CONST CONN PL NOTES: 1. DEMO/TEMPORARY CONDITIONS NOT INCLUDED FOR CLARITY. 2. FABRICATE BOLT HOLES IN WEB SPLICE PLATE TO ACCOMMODATE AS-BUILT HOLES FROM PHASE 1 CONSTRUCTION; CONTRACTOR TO COORDINATE. 3. ADDED PLATES TO MATCH THICKNESS OF AS-BUILT BEAM. SEE NOTE 2 SEE NOTE 3 1/2" MIN 1/2" MIN SHELF; TYP T&B FLG
