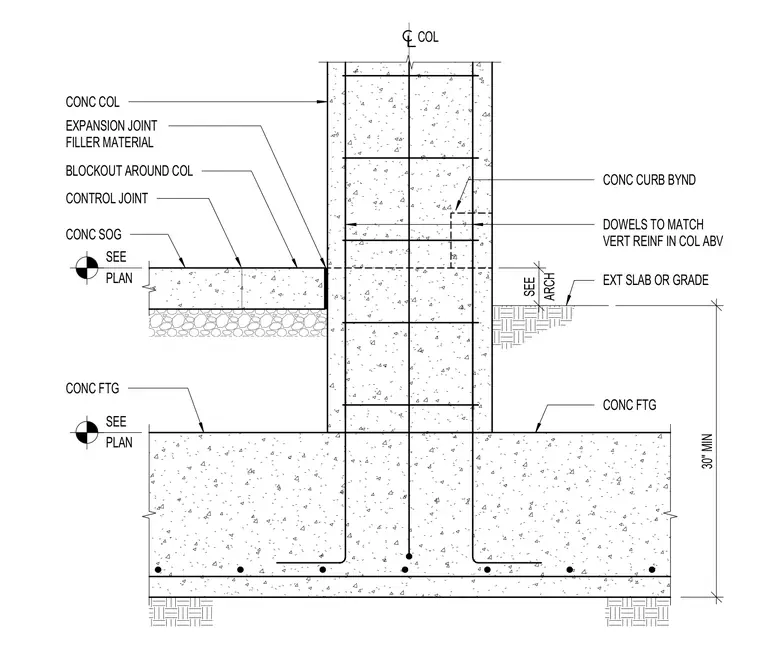

A concrete column ties into a concrete footing with vertical reinforcing dowels extending upward to match the column above. A concrete slab-on-grade isolates from the column through a blockout and an expansion joint filler material with a control joint. An exterior slab or grade sits at a specified dimension above the footing, adjacent to a concrete curb beyond. A thirty-inch minimum dimension marks the depth from the exterior grade to the bottom of the footing.
CONC FTG CONC FTG CONC SOG BLOCKOUT AROUND COL DOWELS TO MATCH VERT REINF IN COL ABV CONC COL SEE PLAN COL CONC CURB BYND EXT SLAB OR GRADE ARCH SEE 30" MIN SEE PLAN EXPANSION JOINT FILLER MATERIAL CONTROL JOINT
