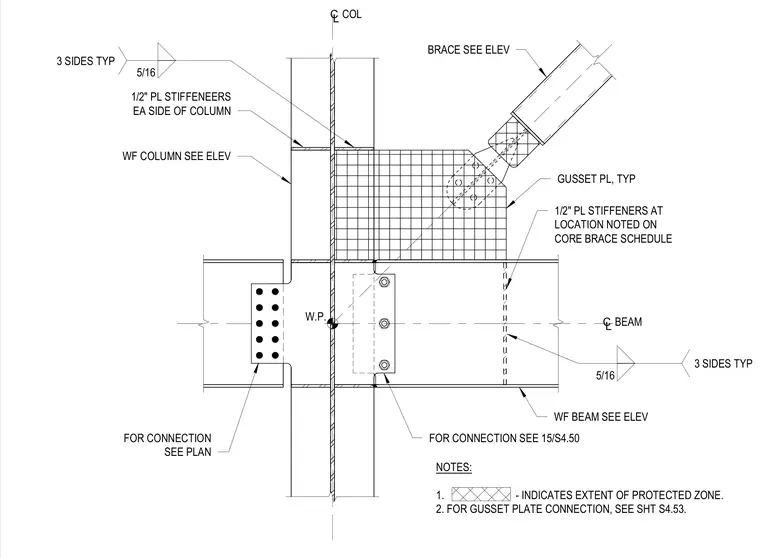

A wide-flange column and wide-flange beam intersect with a gusset plate supporting a buckling-restrained brace. One-half-inch stiffener plates are welded to each side of the column with five-sixteenth-inch fillet welds on three sides. Additional one-half-inch stiffeners are placed at locations noted on the core brace schedule. The connection includes a gusset plate attached to the column and beam framing. Hatched regions designate the extent of the protected zone.
CL COL BRACE SEE ELEV GUSSET PL, TYP 1/2" PL STIFFENERS AT LOCATION NOTED ON CORE BRACE SCHEDULE CL BEAM WF BEAM SEE ELEV FOR CONNECTION SEE 15/S4.50 FOR CONNECTION SEE PLAN W.P. 1/2" PL STIFFENEERS EA SIDE OF COLUMN NOTES: 1. - INDICATES EXTENT OF PROTECTED ZONE. 2. FOR GUSSET PLATE CONNECTION, SEE SHT S4.53. 5/16 3 SIDES TYP WF COLUMN SEE ELEV 5/16 3 SIDES TYP
