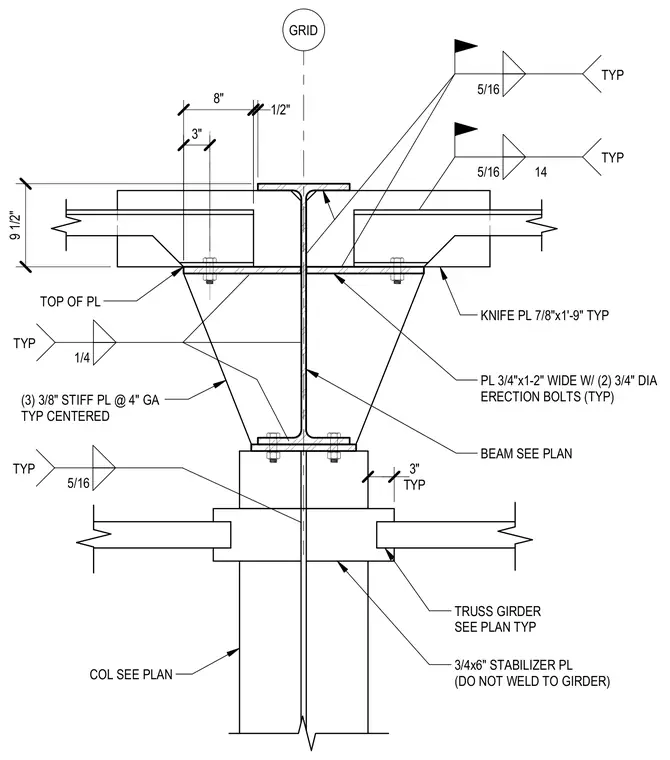

A structural steel truss girder frames into a column utilizing a seven-eighths-inch by one-foot-nine-inch knife plate welded to the column with five-sixteenths-inch fillet welds. A three-quarter-inch by one-foot-two-inch plate secures the connection with two three-quarter-inch diameter erection bolts on each side. Three three-eighths-inch stiffener plates spaced at four-inch gauge are centered beneath the knife plate and welded to the column web with quarter-inch fillet welds. A three-quarter-inch by six-inch stabilizer plate frames the truss girder to the column, left unwelded to the girder per drawing notes.
GRID TOP OF PL KNIFE PL 7/8"x1'-9" TYP PL 3/4"x1-2" WIDE W/ (2) 3/4" DIA ERECTION BOLTS (TYP) BEAM SEE PLAN TRUSS GIRDER SEE PLAN TYP 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) COL SEE PLAN 9 1/2" 3" 1/2" 8" (3) 3/8" STIFF PL @ 4" GA TYP CENTERED TYP 3" 5/16 14 TYP 5/16 TYP 5/16 TYP 1/4 TYP
