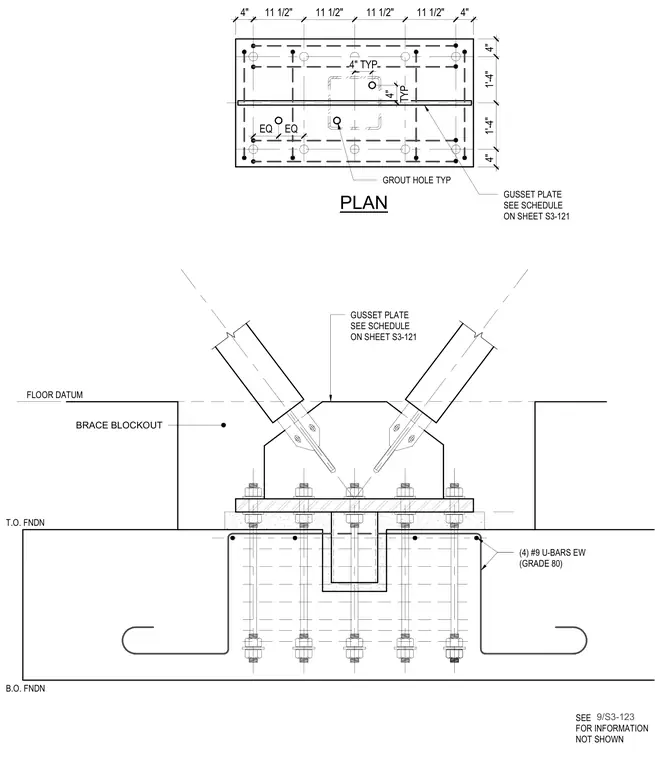

A buckling-restrained brace connects to a thick base plate and gusset plate assembly anchored atop a concrete foundation. The base plate rests over a grout layer with designated grout holes and is secured by multiple vertical anchor rods extending deep into the concrete. Four number 9 U-bars in each direction of Grade 80 reinforcement are placed within the foundation. A brace blockout and floor datum establish the surrounding concrete profile, while the gusset plate size is cross-referenced to sheet S3-121.
GUSSET PLATE SEE SCHEDULE ON SHEET S3-121 FLOOR DATUM BRACE BLOCKOUT PLAN GUSSET PLATE SEE SCHEDULE ON SHEET S3-121 GROUT HOLE TYP 4" B.O. FNDN T.O. FNDN (4) #9 U-BARS EW (GRADE 80) 4" TYP TYP 4" EQ EQ SEE FOR INFORMATION NOT SHOWN 9/S3-123 11 1/2" 11 1/2" 11 1/2" 11 1/2" 4" 4" 1'-4" 1'-4" 4"
