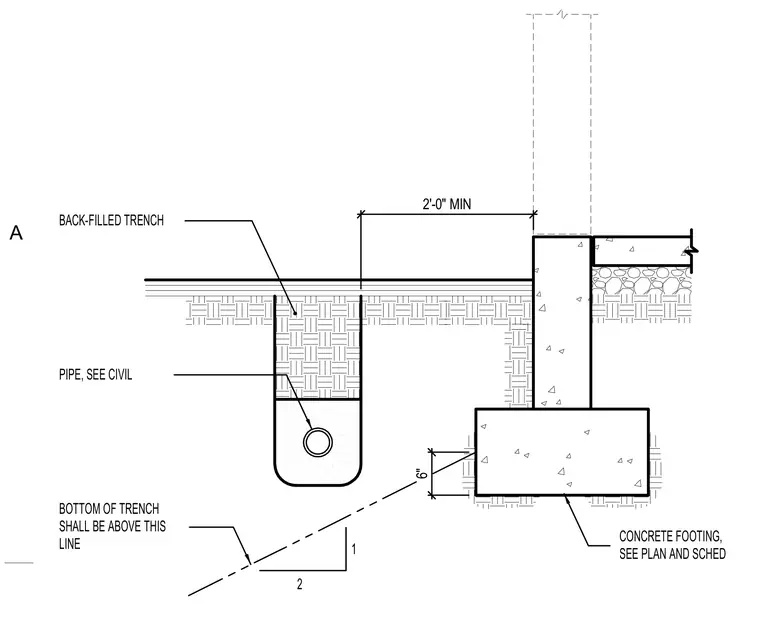

This foundation detail shows the required clearance for a backfilled utility trench running parallel to a concrete footing. The trench must maintain a minimum horizontal distance of two feet from the edge of the footing, with pipe sizing and specifications coordinated per civil drawings. The bottom of the trench must remain above a line projected outward and downward from the bottom of the footing at a two-to-one slope.
BACK-FILLED TRENCH PIPE, SEE CIVIL BOTTOM OF TRENCH SHALL BE ABOVE THIS LINE CONCRETE FOOTING, SEE PLAN AND SCHED 1 2 2'-0" MIN 6" A
