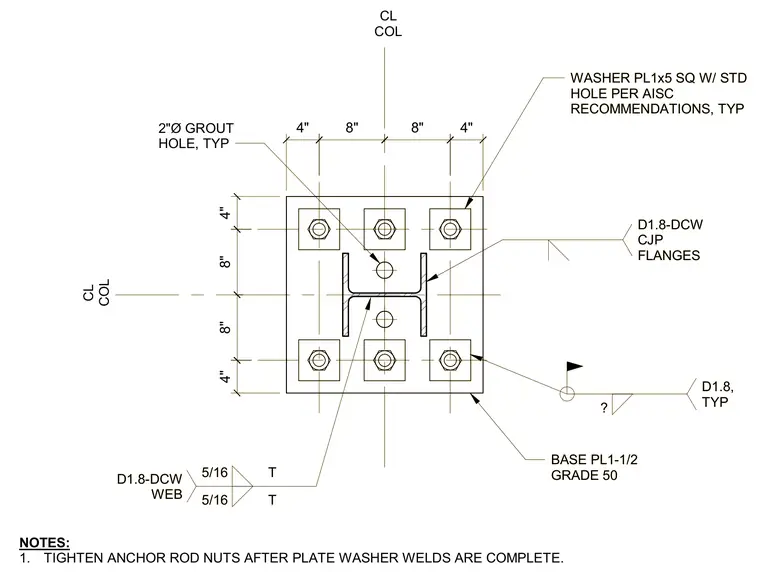

A structural steel column base plate connection for a buckling-restrained braced frame. The assembly features a one-and-one-half-inch Grade 50 base plate welded to the column with complete joint penetration welds at the flanges and five-sixteenth-inch fillet welds at the web per D1.8-DCW requirements. Square plate washers with standard holes are welded around the anchor rods per American Institute of Steel Construction recommendations. Two two-inch diameter typical grout holes are provided in the base plate. Anchor rod nuts are specified to be tightened after the plate washer welds are complete.
5/16 T 5/16 T D1.8-DCW WEB D1.8-DCW CJP FLANGES WASHER PL1x5 SQ W/ STD HOLE PER AISC RECOMMENDATIONS, TYP 2"Ø GROUT HOLE, TYP NOTES: 1. TIGHTEN ANCHOR ROD NUTS AFTER PLATE WASHER WELDS ARE COMPLETE. ? D1.8, TYP CL COL CL COL 4" 8" 8" 4" 4" 8" 8" 4" BASE PL1-1/2 GRADE 50 5/16 T 5/16 T D1.8-DCW WEB D1.8-DCW CJP FLANGES WASHER PL1x5 SQ W/ STD HOLE PER AISC RECOMMENDATIONS, TYP 2"Ø GROUT HOLE, TYP NOTES: 1. TIGHTEN ANCHOR ROD NUTS AFTER PLATE WASHER WELDS ARE COMPLETE. ? D1.8, TYP CL COL CL COL 4" 8" 8" 4" 4" 8" 8" 4" BASE PL1-1/2 GRADE 50
