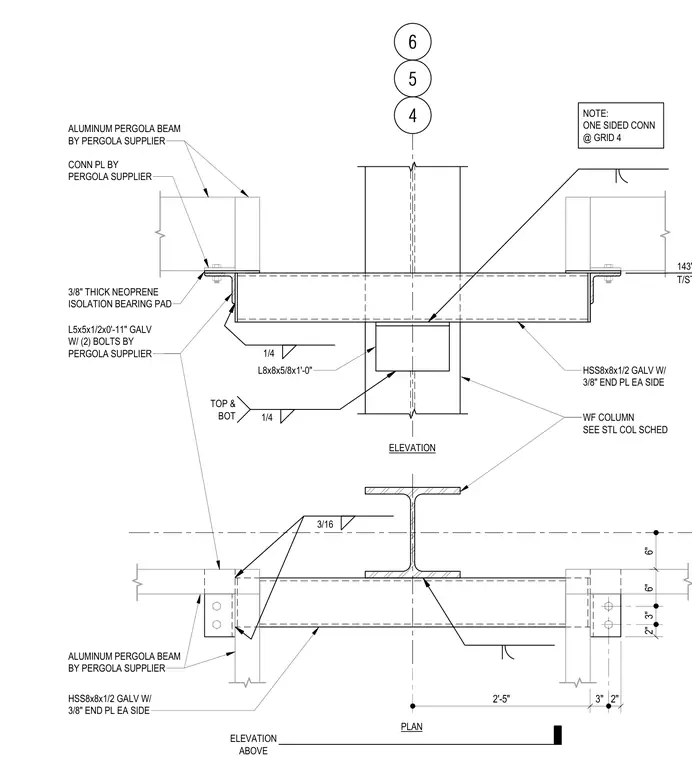

Aluminum pergola beams connect to a wide-flange column using galvanized hollow structural section beams measuring 8x8x1/2 inches with 3/8-inch end plates on each side. A 3/8-inch thick neoprene isolation bearing pad sits beneath the aluminum pergola beam, which is supported by an L5x5x1/2x0'-11" galvanized angle fastened with two bolts by the pergola supplier. The HSS members feature 1/4-inch fillet welds on the top and bottom, while an L8x8x5/8x1'-0" angle is welded to the wide-flange column with 1/4-inch and 3/16-inch fillet welds. A note specifies a one-sided connection at grid 4, with top of steel at 143'-11 5/8".
HSS8x8x1/2 GALV W/ 3/8" END PL EA SIDE L8x8x5/8x1'-0" WF COLUMN SEE STL COL SCHED CONN PL BY PERGOLA SUPPLIER ALUMINUM PERGOLA BEAM BY PERGOLA SUPPLIER 3/8" THICK NEOPRENE ISOLATION BEARING PAD L5x5x1/2x0'-11" GALV W/ (2) BOLTS BY PERGOLA SUPPLIER 2'-5" 3" 2" 2" 3" 6" 6" ELEVATION PLAN ELEVATION ABOVE ALUMINUM PERGOLA BEAM BY PERGOLA SUPPLIER HSS8x8x1/2 GALV W/ 3/8" END PL EA SIDE 3/16 1/4 TOP & BOT NOTE: ONE SIDED CONN @ GRID 4 4 5 6 T/STEEL 143'-11 5/8" 1/4
