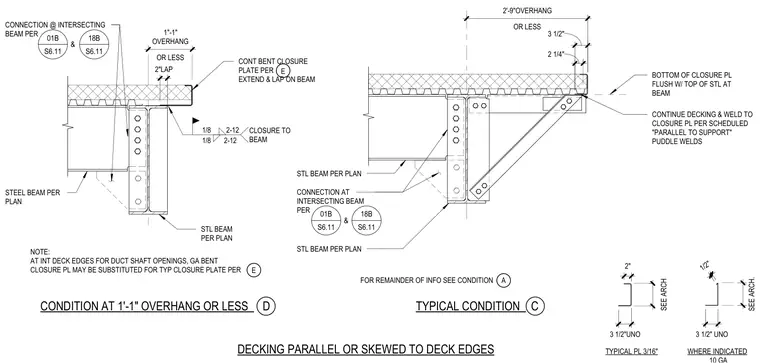

Metal decking conditions at steel beam supports for overhangs of one foot one inch or less and two feet nine inches or less. A continuous bent closure plate is extended and lapped over the steel beam, with the bottom of the closure plate kept flush with the top of the steel beam. Metal decking continues across the support and is secured with parallel-to-support puddle welds per schedule. Fillet welds size one-eighth inch at two to twelve inches spacing connect the closure plate to the beam. For interior deck edges at duct shaft openings, a gauge bent closure plate may be substituted for the typical closure plate.
CONNECTION @ INTERSECTING BEAM PER STL BEAM PER PLAN CONT BENT CLOSURE PLATE PER EXTEND & LAP ON BEAM CONTINUE DECKING & WELD TO CLOSURE PL PER SCHEDULED "PARALLEL TO SUPPORT" PUDDLE WELDS CONNECTION AT INTERSECTING BEAM PER STL BEAM PER PLAN BOTTOM OF CLOSURE PL FLUSH W/ TOP OF STL AT BEAM CONDITION AT 1'-1" OVERHANG OR LESS D TYPICAL CONDITION C 3 1/2" UNO 1/2" DECKING PARALLEL OR SKEWED TO DECK EDGES TYPICAL PL 3/16" WHERE INDICATED 2" 3 1/2"UNO OR LESS 2'-9"OVERHANG 3 1/2" 2 1/4" 2"LAP OR LESS 1"-1" OVERHANG 1/8 2-12 CLOSURE TO BEAM 1/8 2-12 SEE ARCH SEE ARCH. 01B S6.11 & 18B S6.11 01B S6.11 & 18B S6.11 STEEL BEAM PER PLAN E FOR REMAINDER OF INFO SEE CONDITION A NOTE: AT INT DECK EDGES FOR DUCT SHAFT OPENINGS, GA BENT CLOSURE PL MAY BE SUBSTITUTED FOR TYP CLOSURE PLATE PER E STL BEAM PER PLAN
