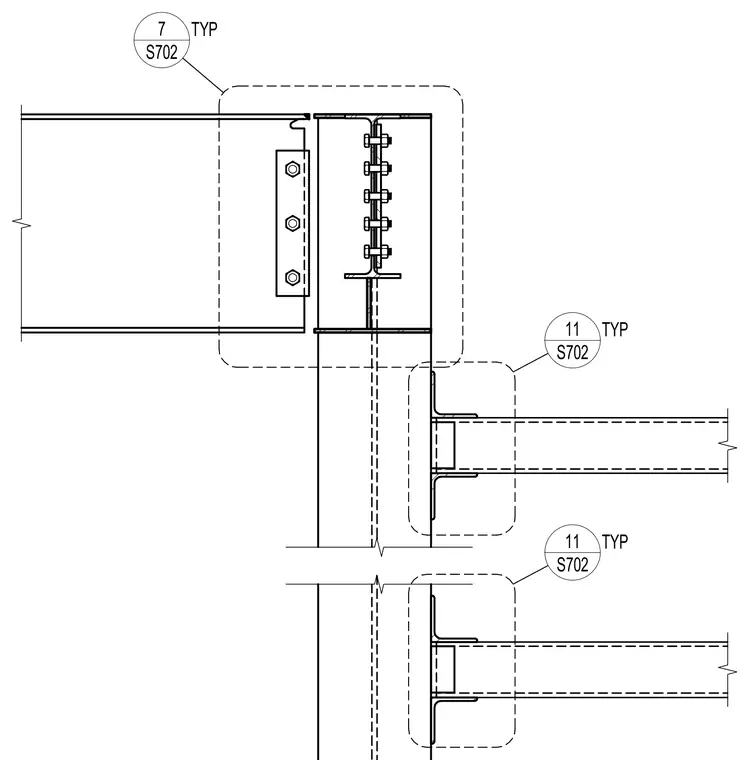

The assembly features a steel beam connected to a vertical structural member via a bolted shear tab and splice plates. Horizontal framing members connect to the column flange using clip angles secured with bolts. Reference callouts point to related structural details on sheet S702.
