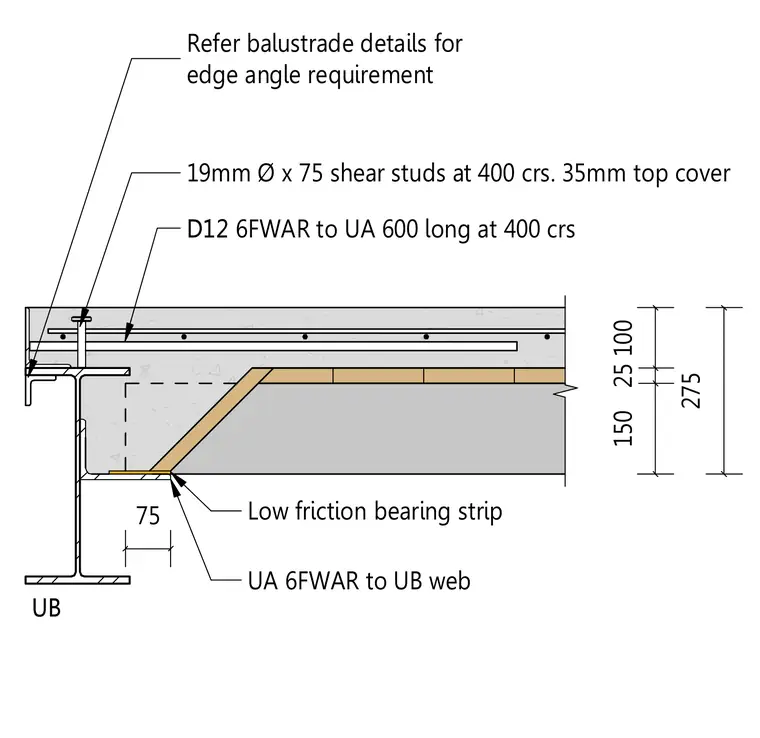

Nineteen millimeter diameter by seventy-five millimeter shear studs are welded to the top flange of the universal beam at four hundred millimeter centers with thirty-five millimeters of top cover. A universal angle with six-millimeter fillet welds and reinforcing bars extends six hundred millimeters long at four hundred millimeter centers into the concrete topping. A low friction bearing strip sits on the lower leg of an angle connected to the universal beam web with six-millimeter fillet welds. Edge angle requirements must coordinate with adjacent balustrade details.
D12 6FWAR to UA 600 long at 400 crs 19mm Ø x 75 shear studs at 400 crs. 35mm top cover UB UA 6FWAR to UB web 75 150 25 100 275 Refer balustrade details for edge angle requirement Low friction bearing strip
