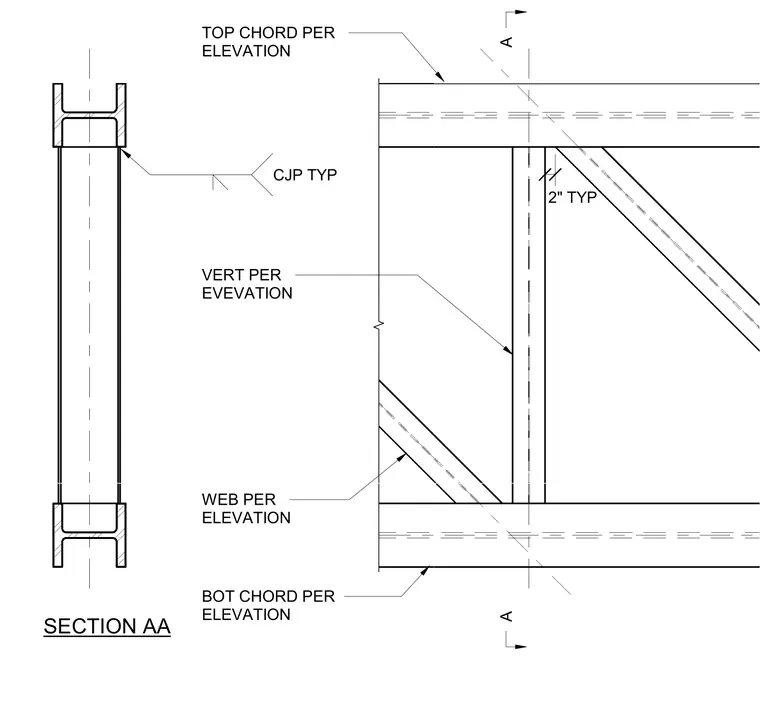

Structural steel truss joints utilize top and bottom chords sized per elevation with webs and vertical members connected by complete joint penetration welds typical throughout the assembly. Section AA shows the profile of the connected structural members and weld configurations. Member sizes and layout dimensions follow the structural elevation drawings.
SECTION AA A A CJP TYP 2" TYP TOP CHORD PER ELEVATION BOT CHORD PER ELEVATION VERT PER EVEVATION WEB PER ELEVATION
