This connection detail joins steel brace frame beams to a vertical steel column. Three-eighths-inch stiffener plates are welded to each side of the web at the top and bottom, aligned with the beam flanges. A three-sixteenths-inch fillet weld secures the typical flanges and web. If the transition from beam depths exceeds thirty degrees, stiffeners are required for each beam.

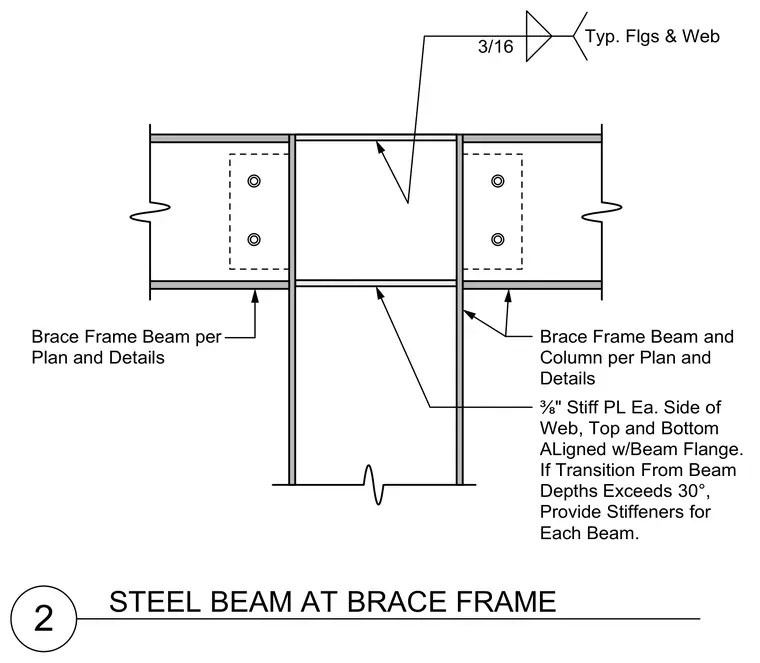

2 STEEL BEAM AT BRACE FRAME Brace Frame Beam and Column per Plan and Details ⅜" Stiff PL Ea. Side of Web, Top and Bottom ALigned w/Beam Flange. If Transition From Beam Depths Exceeds 30°, Provide Stiffeners for Each Beam. Typ. Flgs & Web 3/16 Brace Frame Beam per Plan and Details
