Concrete Slab on Steel Deck at Basement Wall and Wide Flange Beam

Materials

Concrete Steel Timber / Wood

Elements

Walls Facades / Cladding Decks Arches

Connections

Welded Connection Deck Attachment

About this detail

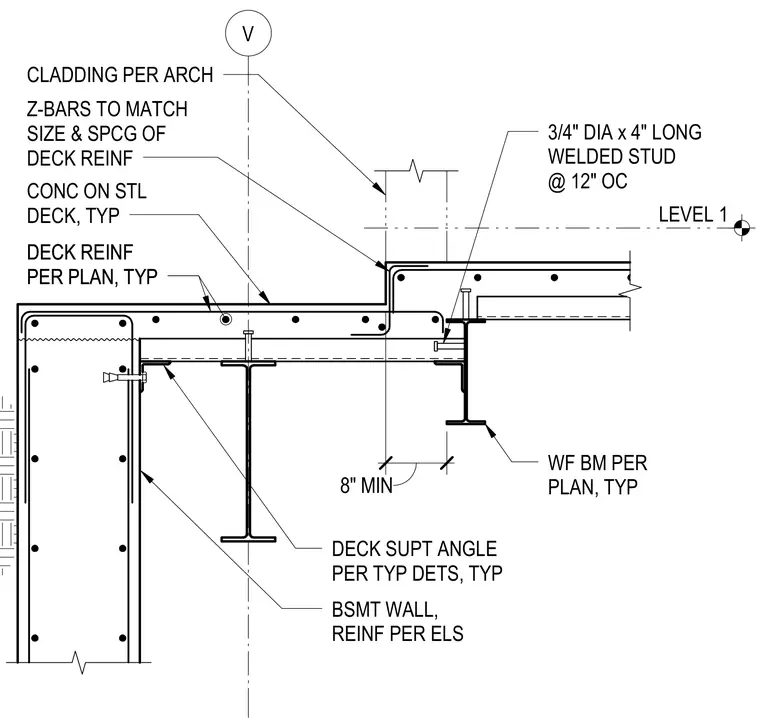

A concrete slab on steel deck bears on a wide flange beam and a reinforced concrete basement wall. The deck is supported at the wall by a deck support angle with embedded anchors, and shear transfer to the framing is provided by three-quarter-inch diameter by four-inch long welded studs spaced at twelve inches on center. Z-bars matching the size and spacing of the deck reinforcement tie into the slab step at Level 1, with cladding detailed per architectural drawings. Deck reinforcement and wide flange beam sizes are sized per plan, and basement wall reinforcement is per elevations.
