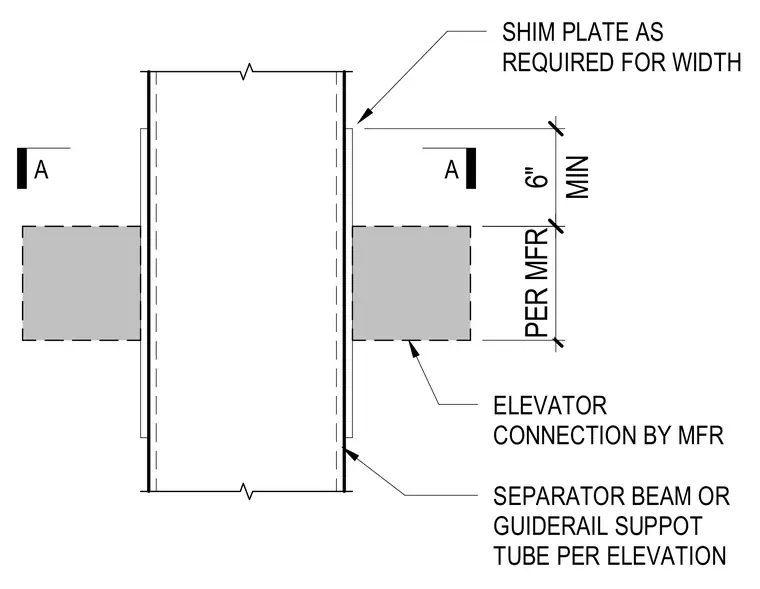

An elevator separator beam or guiderail support tube connects to the building structure with shim plates provided as required for width adjustments. The elevator connection details are specified by the manufacturer, maintaining a minimum six-inch spacing.
MIN 6" PER MFR ELEVATOR CONNECTION BY MFR SEPARATOR BEAM OR GUIDERAIL SUPPOT TUBE PER ELEVATION A A SHIM PLATE AS REQUIRED FOR WIDTH
