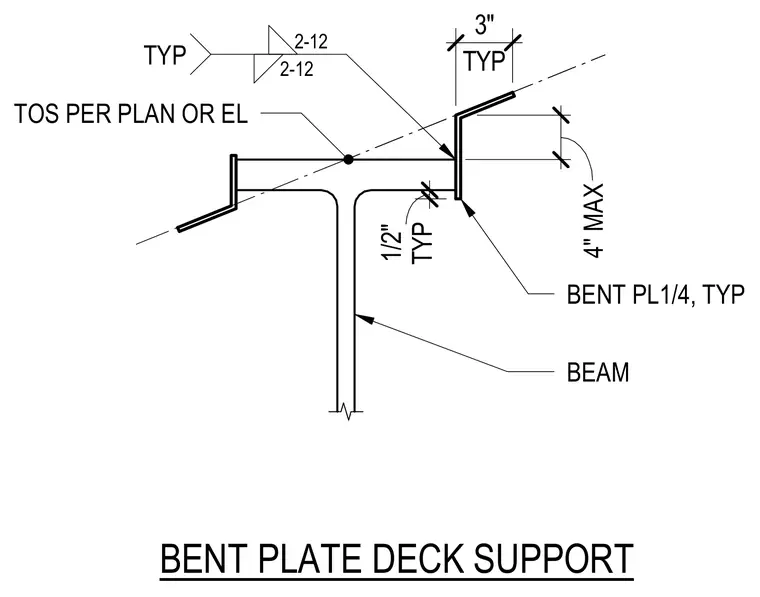

A one-quarter-inch thick bent steel plate provides edge support for metal decking along a structural steel beam. The bent plate is welded with two-twelve welds and positioned with a typical three-inch horizontal dimension and four-inch maximum vertical dimension. The top of steel elevation is established per plan or elevation notes, maintaining a typical one-half-inch clearance from the beam edge.
BENT PLATE DECK SUPPORT BENT PL1/4, TYP BEAM TYP 2-12 2-12 TYP 1/2" 2 1/4" TYP 3" TOS PER PLAN OR EL 4" MAX
