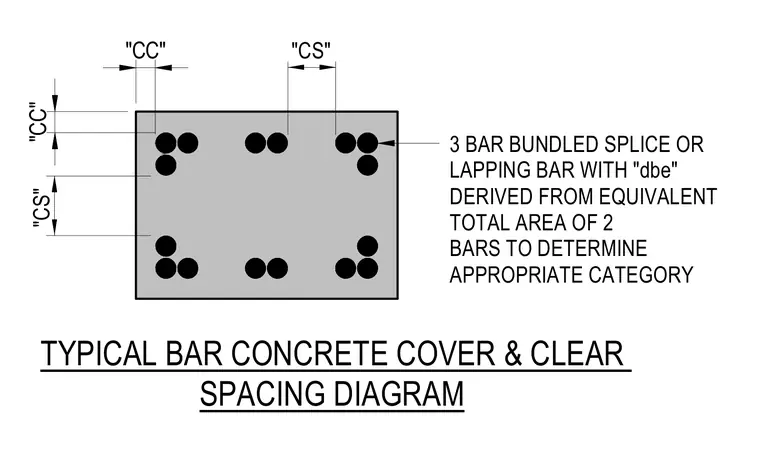

Typical concrete cover and clear spacing requirements for reinforced concrete members include clear cover dimensions (CC) to the exterior bars and clear spacing dimensions (CS) between reinforcing bars. A three-bar bundled splice or lapping bar is detailed with an equivalent diameter dbe derived from the total area of two bars to determine the appropriate category.
TYPICAL BAR CONCRETE COVER & CLEAR SPACING DIAGRAM "CS" "CS" 3 BAR BUNDLED SPLICE OR LAPPING BAR WITH "dbe" DERIVED FROM EQUIVALENT TOTAL AREA OF 2 BARS TO DETERMINE APPROPRIATE CATEGORY "CC" "CC"
