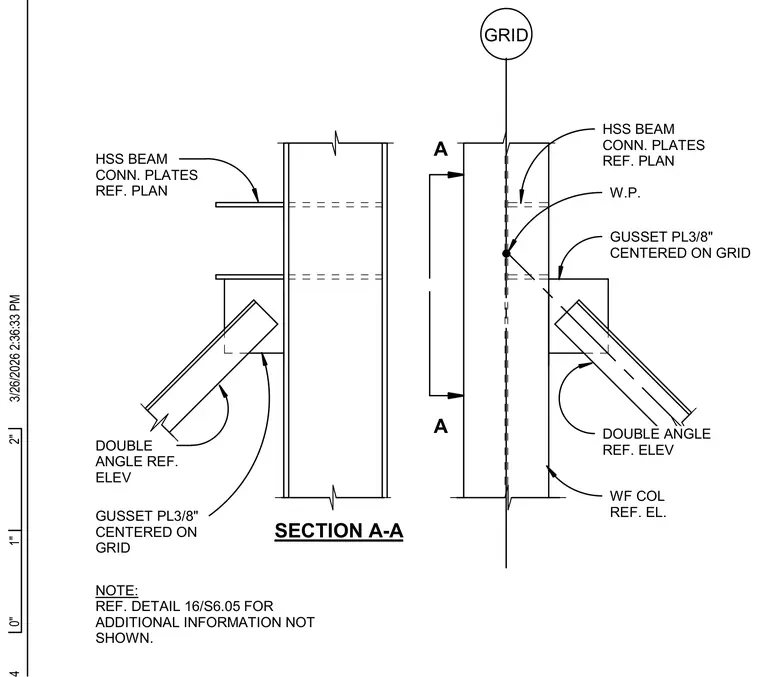

A structural brace connects to a wide flange column with a three-eighths-inch gusset plate centered on the grid line. Double angles connect the bracing member to the gusset plate per elevation, while hollow structural section beam connection plates are referenced from the plan. A working point marks the intersection of framing lines at the column centerline. Additional information is referenced in detail sixteen on sheet S6.05.
W.P. GRID NOTE: REF. DETAIL 16/S6.05 FOR ADDITIONAL INFORMATION NOT SHOWN. A SECTION A-A A GUSSET PL3/8" CENTERED ON GRID DOUBLE ANGLE REF. ELEV HSS BEAM CONN. PLATES REF. PLAN HSS BEAM CONN. PLATES REF. PLAN GUSSET PL3/8" CENTERED ON GRID DOUBLE ANGLE REF. ELEV WF COL REF. EL. 0" 1" 2" 3/26/2026 2:36:33 PM
