Concrete Beam Elevation and Reinforcement Detail

Materials

Elements

About this detail

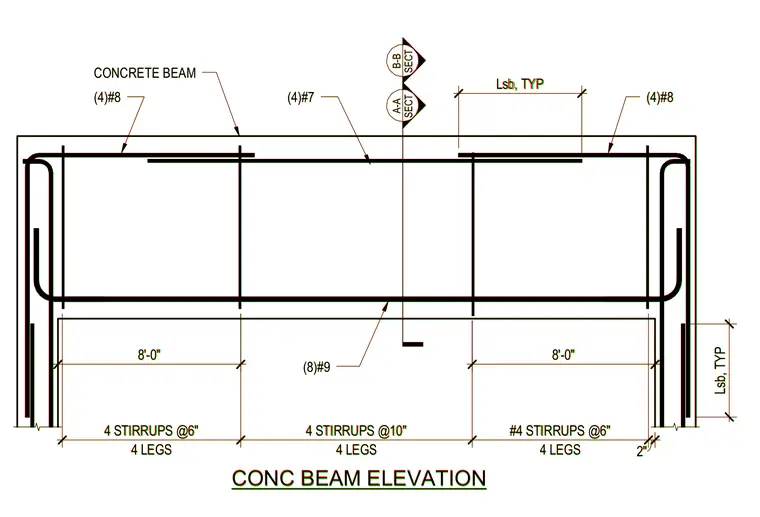

This elevation details a reinforced concrete beam featuring four number eight bars at the top, four number seven bars, and eight number nine bars at the bottom with a lap splice length designated as typical. Transverse shear reinforcement consists of four-leg number four stirrups spaced at six inches on center near the supports and ten inches on center in the central region. Two-inch concrete cover is maintained around the perimeter, with vertical wall extensions detailed with additional reinforcing bars.
