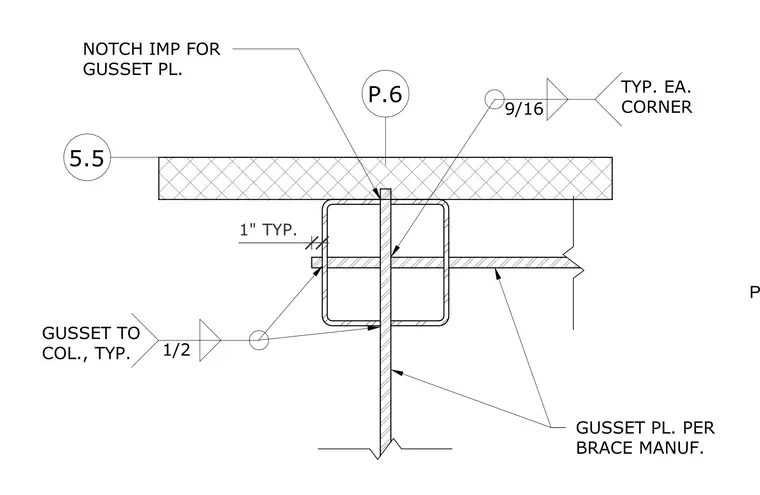

This assembly features a cruciform gusset plate configuration passing through a hollow structural section column. The gusset plates are sized per the brace manufacturer and are welded to the column using a one-half inch fillet weld. A nine-sixteenths inch fillet weld is applied at each corner of the gusset plate intersection. The column wall is notched to accommodate the gusset plate, with a one-inch typical clearance provided.
Text on the drawing
TYP. EA. CORNER 9/16 P.6 NOTCH IMP FOR GUSSET PL. 1" TYP. 5.5
