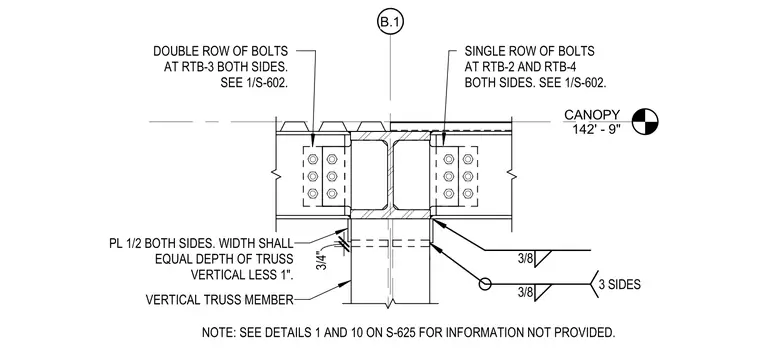

Canopy connection at grid line B.1 between the top chord and the vertical truss member. A 1/2-inch plate is welded on both sides of the vertical truss member using 3/8-inch welds applied on three sides, with the plate width specified to equal the depth of the truss vertical less 1 inch. Bolted connections tie the top chord framing to the vertical, utilizing a double row of bolts at RTB-3 on both sides and a single row of bolts at RTB-2 and RTB-4 on both sides. Additional information is referenced by notes directing to details 1 and 10 on sheet S-625.
B.1 CANOPY 142' - 9" DOUBLE ROW OF BOLTS AT RTB-3 BOTH SIDES. SEE 1/S-602. SINGLE ROW OF BOLTS AT RTB-2 AND RTB-4 BOTH SIDES. SEE 1/S-602. PL 1/2 BOTH SIDES. WIDTH SHALL EQUAL DEPTH OF TRUSS VERTICAL LESS 1". 3/4" 3/8 NOTE: SEE DETAILS 1 AND 10 ON S-625 FOR INFORMATION NOT PROVIDED. VERTICAL TRUSS MEMBER 3/8 3 SIDES
