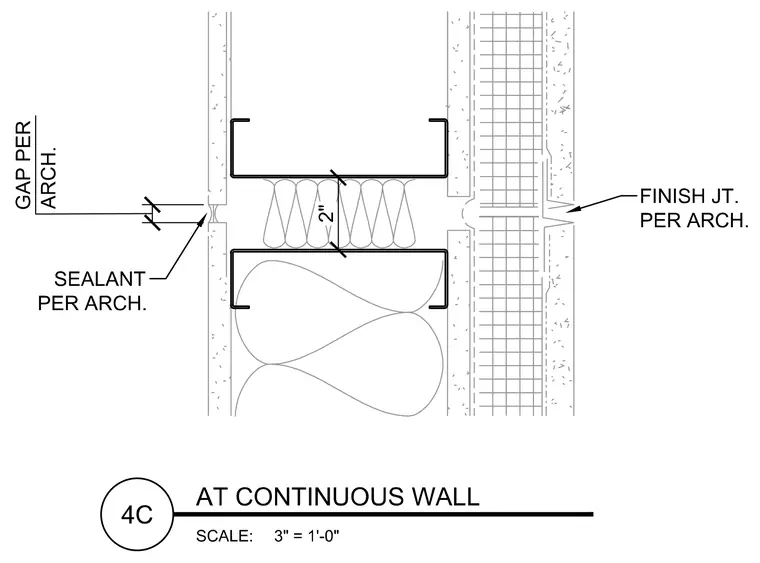

An expansion joint at a continuous wall features a two-inch separation between light-gauge metal stud framing members. The exterior joint is sealed with joint sealant and sized per architectural requirements. The interior side includes a finished joint detail per architectural specifications.
