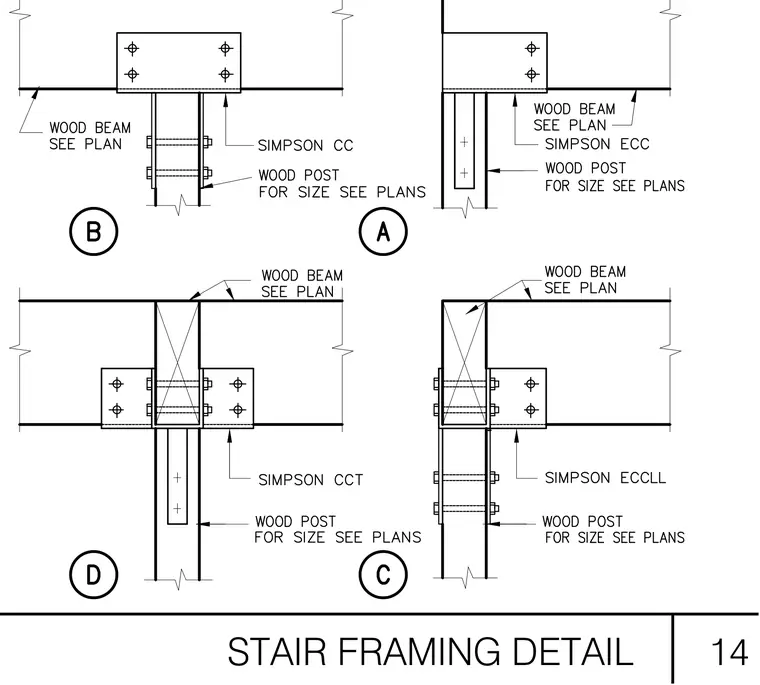

Wood post and beam framing connections utilize Simpson Strong-Tie post caps including models CC, ECC, CCT, and ECCLL depending on the configuration. Wood posts and beams are sized per the structural plans. Through-bolts or column cap fasteners secure the wood post to the wood beam through steel post cap brackets. These post-to-beam connectors provide structural load transfer for wood stair framing systems.
