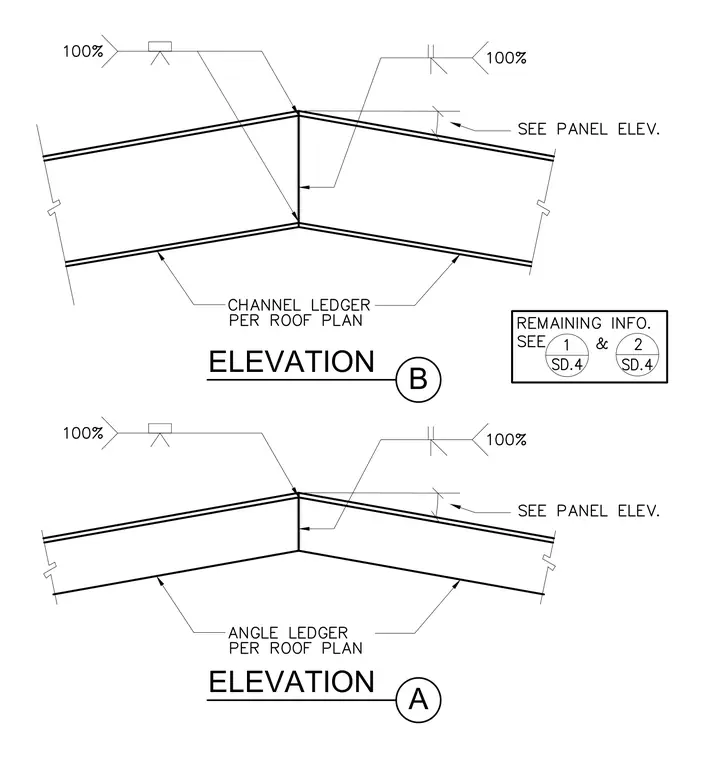

Two roof ledger splice elevations showing channel ledger or angle ledger configurations per roof plan. Each assembly features a vertical joint splice with one hundred percent weld callouts and reference dimensions to panel elevations. Additional information is referenced to details one and two on sheet SD.4.
