Structural · S-XV6RS

Steel Column Base Plate and Concrete Pier Foundation Details

Materials

Concrete Reinforced Concrete Steel Timber / Wood Masonry / CMU Brick

Elements

Columns Walls Facades / Cladding Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

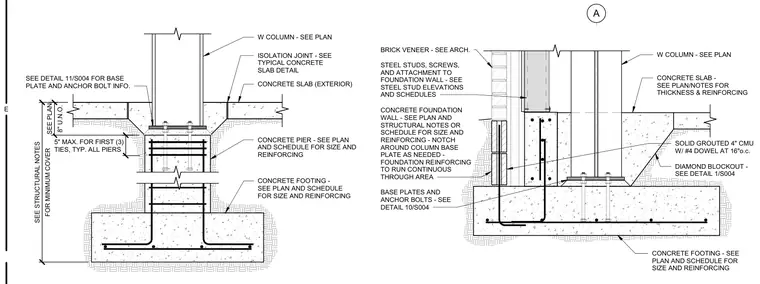

A wide-flange steel column is supported on a concrete pier and concrete footing, featuring base plates and anchor bolts as detailed in referenced structural drawings. The concrete pier incorporates closely spaced ties at the top with specified minimum cover, and connects to an exterior concrete slab separated by an isolation joint. An alternate configuration has the pier adjacent to a concrete foundation wall, solid grouted concrete masonry unit backup with vertical dowels, steel studs, and exterior brick veneer. The foundation reinforcing runs continuously through the footing area, and the foundation wall is notched around the column base plate as needed.
