Structural · S-XV2R9

Ledger Details at Beam Web

Materials

Elements

About this detail

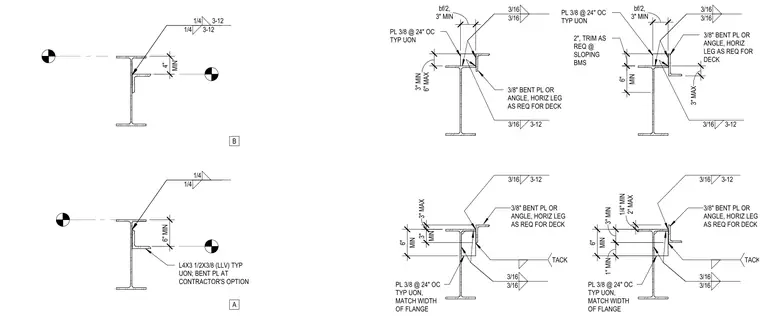

Ledger angles or three-eighths-inch bent plates are welded to the web of a structural steel beam to support metal decking. The ledger angles or bent plates feature a horizontal leg sized as required for the deck, with three-sixteenths-inch fillet welds spaced at three to twelve inches. Additional components include three-eighths-inch plates spaced at twenty-four inches on center matching the flange width, and an optional L4x3 1/2x3/8 angle configuration at the contractor's discretion. Vertical clearances and minimum dimensions such as four inches, six inches, and two inches are noted for proper positioning relative to the beam flange.
