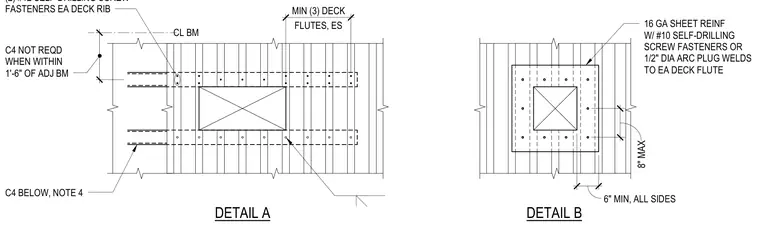

Metal deck openings are reinforced with sixteen-gauge sheet steel secured by number ten self-drilling screw fasteners or one-half-inch diameter arc plug welds to each deck flute at a maximum spacing of eight inches. Each deck rib receives two number ten self-drilling screw fasteners over channel members below, with a minimum of three deck flutes extending on each side of the opening. Channel framing is not required when the opening is within one foot six inches of an adjacent beam.
DETAIL A DETAIL B 16 GA SHEET REINF W/ #10 SELF-DRILLING SCREW FASTENERS OR 1/2" DIA ARC PLUG WELDS TO EA DECK FLUTE 8" MAX 6" 6" MIN, ALL SIDES (2) #12 SELF-DRILLING SCREW FASTENERS EA DECK RIB C4 BELOW, NOTE 4 MIN (3) DECK 18" FLUTES, ES 13" C4 NOT REQD WHEN WITHIN 1'-6" OF ADJ BM CL BM
