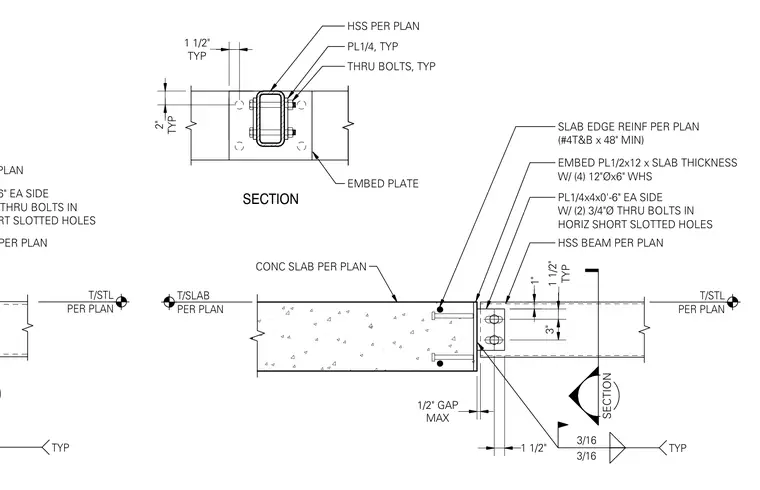

An HSS beam connects to a concrete slab edge using a continuous embed plate and side connection plates. The embed plate measures 1/2 inch by 12 inches by the slab thickness and includes four welded stud anchors. Two 1/4-inch thick plates measuring 4 inches by 6 inches are welded to each side of the HSS beam with 3/16-inch fillet welds. Two 3/4-inch diameter through-bolts installed in horizontal short slotted holes secure the connection. A maximum 1/2-inch gap is maintained between the structural steel and the concrete slab edge. Slab edge reinforcement consists of number 4 top and bottom bars extending 48 inches minimum.
T/SLAB PER PLAN T/STL PER PLAN T/STL PER PLAN 3/16 3/16 TYP EMBED PL1/2x12 x SLAB THICKNESS W/ (4) 12"Øx6" WHS PL1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES HSS BEAM PER PLAN SLAB EDGE REINF PER PLAN (#4T&B x 48" MIN) CONC SLAB PER PLAN MAX 1/2" GAP PL1/4, TYP THRU BOLTS, TYP EMBED PLATE HSS PER PLAN SECTION TYP 2" TYP 1 1/2" 1" TYP 1 1/2" 3" BEAM PER PLAN TYP SECTION HSS BEAM PER PLAN PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES 1 1/2"
