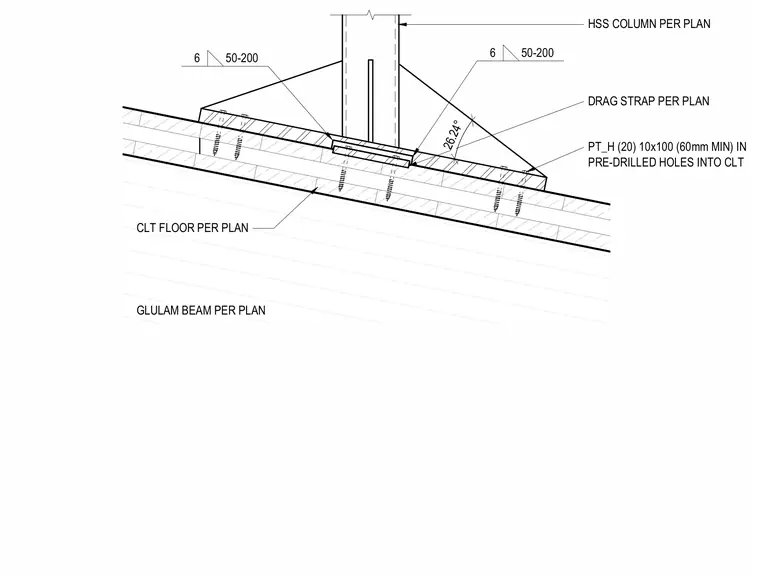

An inclined hollow structural section column bears on a cross-laminated timber floor supported by a glulam beam below. A steel drag strap is secured to the cross-laminated timber floor using twenty 10x100 fasteners installed in pre-drilled holes with a 60mm minimum depth. Fillet welds join the column base assembly with specified sizing and spacing.
6 50-200 6 50-200 DRAG STRAP PER PLAN PT_H (20) 10x100 (60mm MIN) IN PRE-DRILLED HOLES INTO CLT 26.24° HSS COLUMN PER PLAN GLULAM BEAM PER PLAN CLT FLOOR PER PLAN
